1. Wireless channel: ISM5.8GHz-5.95GHz
2. Sensitivity:-92dB
3.Format: NTSC/PAL
4.Output voltage: 1V±0.2Vp_P/750
5.Screen size: nine inches
6.Screen resolution: 800x480
7. Screen display ratio: 16:9
8. Screen brightness: 500cd/㎡
9. Screen contrast: 500:1
10. Viewing angle: 140/120 degrees (horizontal/vertical)
11. Latency lower than: 20ms
12.Charging:Type-c
13. Antenna interface: Rp--SMA inner pin
14.AV line output: audio
15. Audio frequency range: 20Hz--20KHz stereo
16. Two types: English and Chinese
17. Working voltage: 3.7v-11.1v
18. Working current: 800mA＠7.4V(max)
19. Internal battery: 800mAh/7.4V
20.Temperature:-10℃-+65℃
21. Standalone (excluding battery): 400g

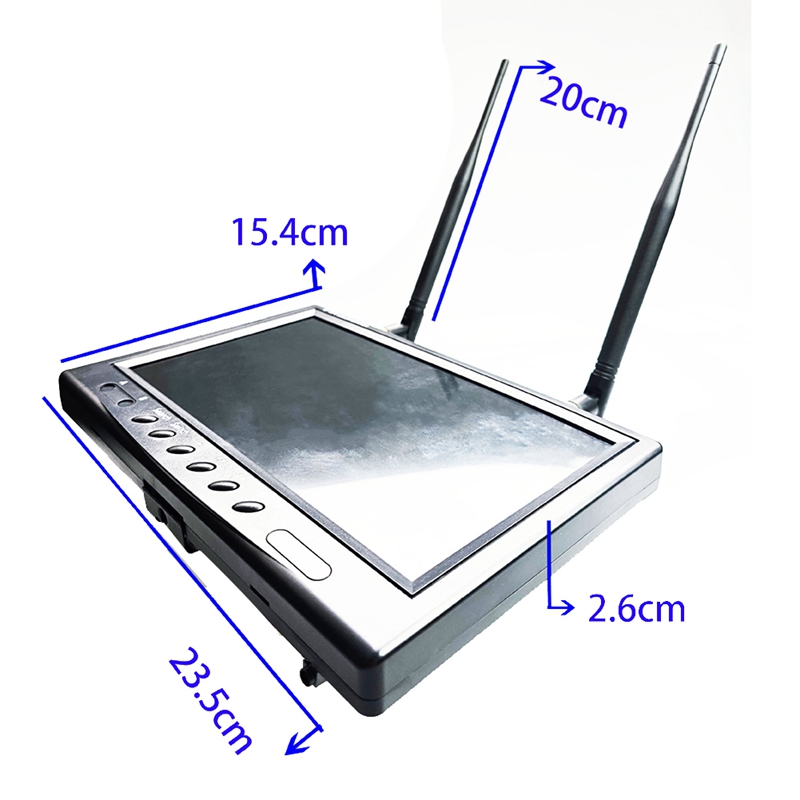

22.LxWxH (except antenna): 23.5cmX15.4cmX2.6cm
23.Colour:Black
24.Material:plastic
Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use.

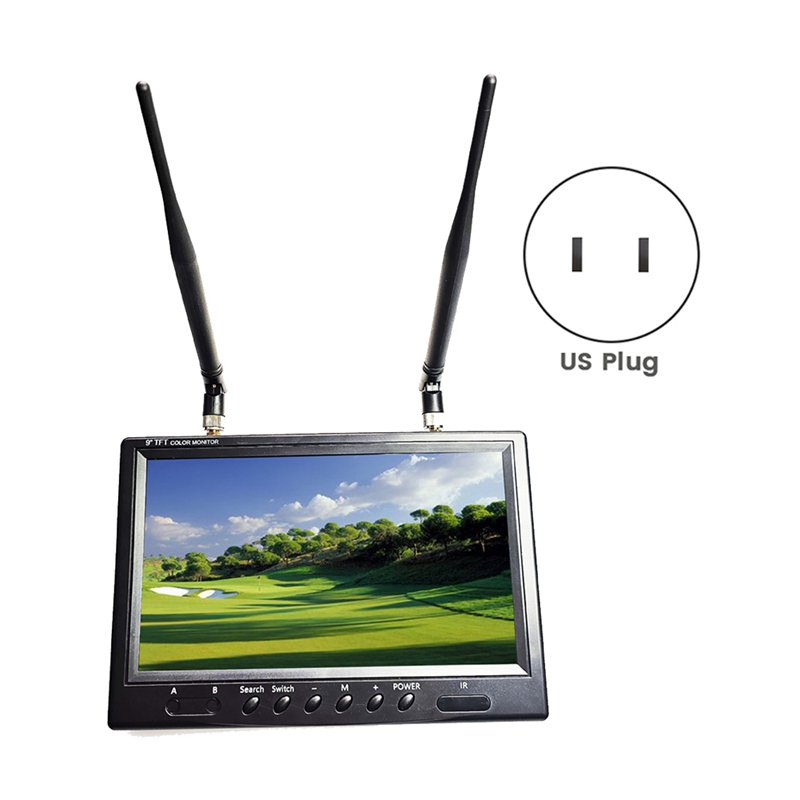

Plug Type: US Plug, it applies to Canada, India, Mexico, Thailand, Taiwan, the United States, the Philippines and so on.
Plug Type :EU Plug,it applies to Indonesia, Germany, France, Spain, Italy and so on.
Voltage: AC110V
Voltage: AC100-240V
Package Contents:
1 x FPV Monitor
